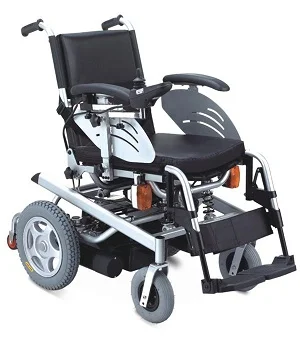

Power Wheel Chair – NSL123

Product Description:
Purpose
NSL123

Wheelchair for the movement of patients and invalids with a partial loss of the functions of the locomotor system in conditions of premises and on roads with a hard surface. Movement is carried out independently or with the help of an accompanying person.
SPECIFICATIONS:

Dimensions in working condition (LxWxH) (± 5%): 1040х640х940 mm

Dimensions of the seat (ШхД) (± 5%): 455х430 mm

Width between handrails (± 5%): 420 mm

Wheel diameter (front / rear) (± 5%): 200/330 mm

Speed ​​(± 5%): 0-6 km / h

Range of travel on one charge (± 5%): 15-20 km

Battery capacity (± 5%): 28 Ah

Lifting capacity ± 5%): 110 kg
Description:

SPRINGS The
wheelchair is equipped with removable, swivel, height-adjustable footrests. ARMCHAIRS The wheelchair is equipped with detachable height-adjustable armrests.

Armrests have soft pads on the handrails.

BRAKE The
wheelchair is equipped with an electromagnetic brake, which is disengaged when driving and automatically turns on when stopped.

WHEELS The
wheelchair is equipped with wheels with pneumatic rear and front solid tires

CONTROL PANEL
Button “On / Off”. This button turns the control system on and off.

The battery level indicator is a 10-segment indicator that shows the status of the battery.

The maximum speed indicator is a 5-segment indicator that shows the current speed level.

The “Beep” button is designed to attract the attention of pedestrians.
The slow down button sets the slower driving level.
The speed increase button sets a faster driving level. SAFETY BELT The wheelchair is equipped with a safety belt, which is adjustable in length and has a secure clasp.

FRAME The
frame of the wheelchair is made of metal alloy with enamel coating. BACK AND SEAT The seat and backrest are made of strong nylon breathable fabric.

The backrest of the wheelchair is adjustable in tilt angle.

A convenient pocket is provided behind the back.
